Graphite Gasket For Level Gauge

Description

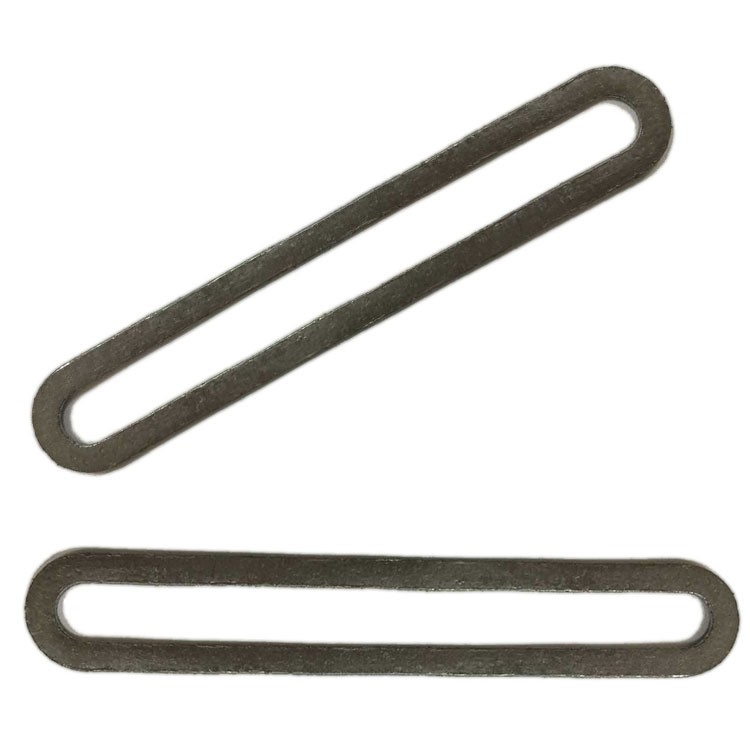

Graphite gasket for level gauge is also named graphite sealing gasket which resistant to temperatures up to 450 °C and the pressure to 150 bar.

There are two types of graphite sealing gasket：

Type A is made of 100% pure expanded graphite paper or plate.

Type B is made of composite graphite which is reinforced by tinplate or stainless steel sheet (SLS or PSM).

Graphite gasket is a traditional material for the gauge glass sealing as a general purpose gasket material suitable for service in hot water, mild acids, alkalines, and inert gases in all over the world.

Usage:

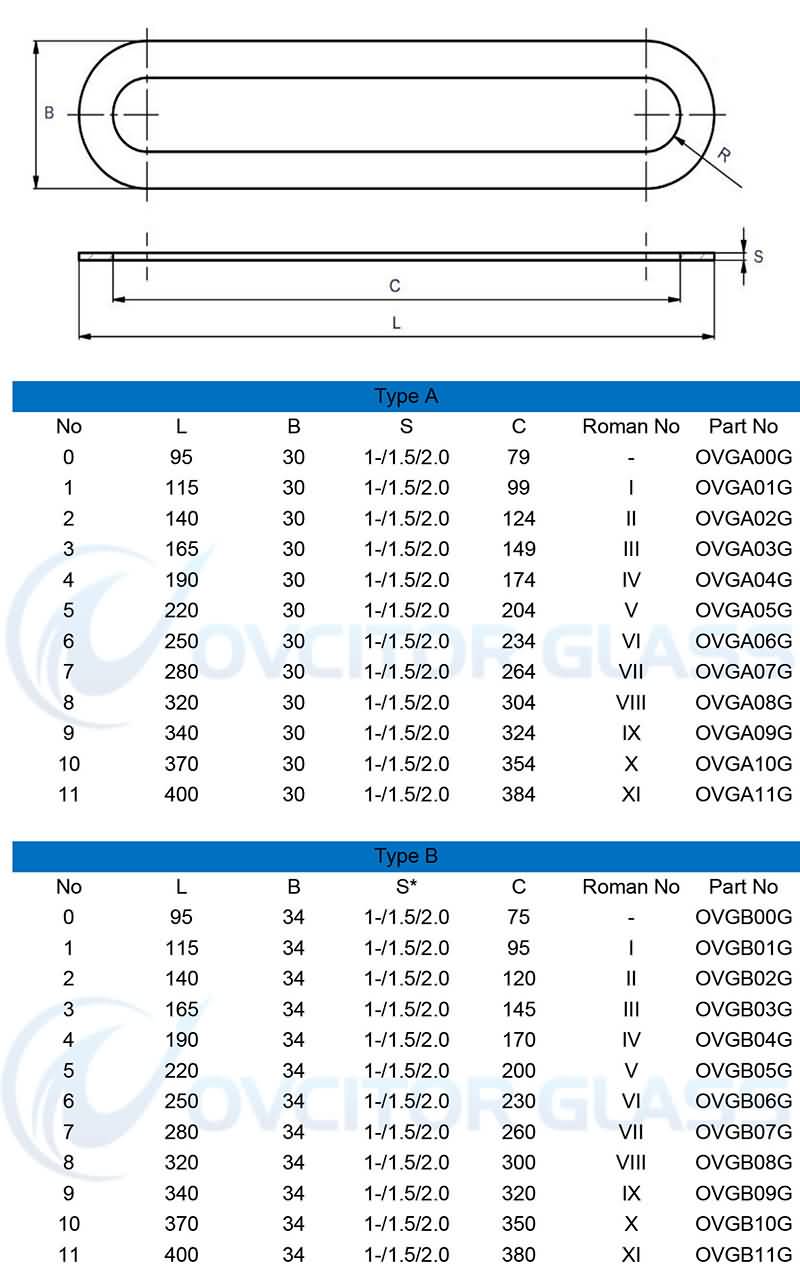

Size and dimention

*All size unit in mm

*The dimensions of the gasket must be matched to the dimensions of the gauge glass.
