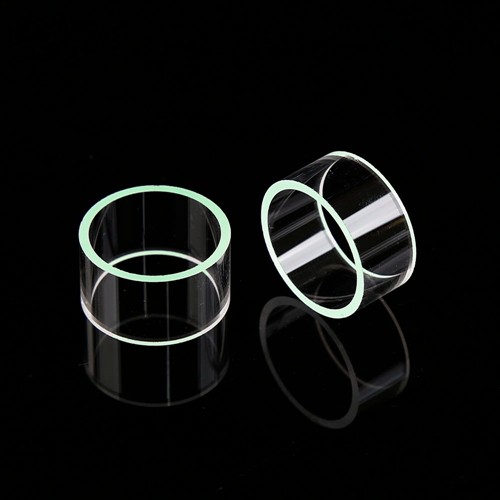

Soda Lime Glass Tube

  • Product Item:OV-17
  • Material: Soda lime
  • Colour: transparent
  • Use: medical test tube,etc
  • Size: Various
  • Inquiry Send Email

    Description

    Soda-lime Glass Tube is a cost-effectively tube which is made from the most commonly available glass and contains both sodium and calcium. This type of glass is used for windows in buildings, bottles and jars and can also be used cost-effectively to make tubes, rods, plates, spheres and finished glassware components. Although it will not withstand as high a temperature as borosilicate glass, it can still be successfully used for many different scientific and industrial applications.

    Physical Data of  Soda Lime Glass Tube

    Density

    2.47 g/cm3

    Working temperature

    150°C

    Coefficient of mean linear thermal expansion

    9.8X10-7/°C

    Visible light transmittance (546nm)

    about 92%

    Resistance value

    10000 times than ordinary glass

    Annealing point

    514°C

    Softening point

    695°C

    Chemical Data of Soda Lime Glass Tube

    Composition

    SiO2

    CaO+MgO

    K2O

    Na2O

    Al2O3

    Other

    approx.weight %

    71

    8

    2

    16

    2

    1

    Water resistance to ISO720

    1

    Water resistance to European Pharmacopoeia

    3

    Water resistance to USP23

    3

    Acid resistance Class(DIN12116)

    1

    Alkali resistance Class(ISO695)

    2


    Inquiry Us





    Related Products

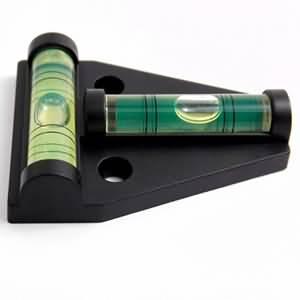

    T type Triangular Spirit Level Bubble Vials Indicator
