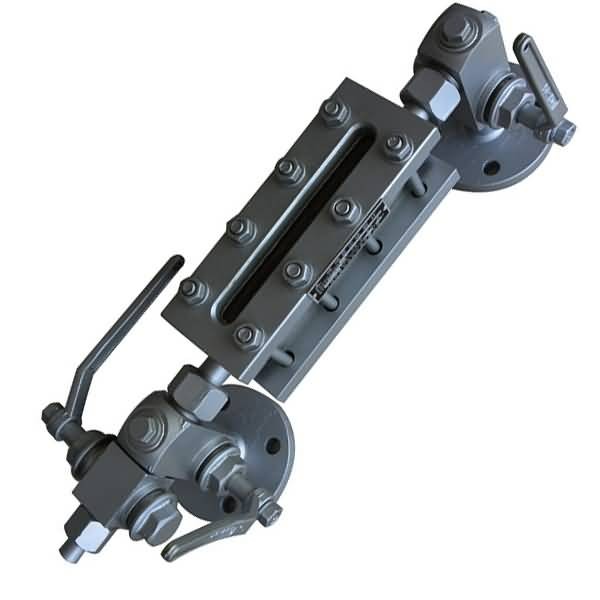

Transparent Level Gauge

  • Product Item:OV-122
  • Material: Borosilicate Glass/Carbon steel/Stainless steel
  • Type: transparent type level gauge
  • Working temperature: Up to 450 Deg.C
  • Application: observe liquid level
  • transparent level gauge  , transparent level indicator  , transparent type level gauge  , flat glass level gauge  , plain glass level gauge
    Inquiry Send Email

    Description

    Transparent level gauge is also known as transparent level indicator,transparent glass level gauge. Transparent level gauges are usually fitted with two plate transparent in glasses between which the fluid is contained. When the upper chamber is filled with gas and the lower chamber is filled with liquid, the fluid level is indicated as the result of the different transparency. At the back of the transparent level gauge is a light source with rays reflecting down to the observer making it possible to read or estimate the measurement.

    For most application, a transparent level gauge is appropriate. Compared with reflex level gauge, transparent level gauge can be used in higher working pressure and some corrosive fluid environment.

    To avoid leakage in case of glass breakage, safety ball-check device is usually provided in cross-fittings or shut-off valves.To protect glass surfaces from corrosive action of the process fluid, Transparent Level Gauges can be fitted with Mica shields or Polytrifluorochloroethilene shields.

    Product Features

    1. Easy to instal, cost-effective
    2. Direct view of the fluid level
    3. More economic solution for fluid level checking
    4. Different refraction behavior with liquid and gas
    5. Easy maintenance and very long service life
    6. Suitable for steam media up to 100 bar and process media up to 400 bar

    Main Technical Data

    Model

    Reflex Level Gauge

    Transparent Level Gauge

    Body Material

    Carbon Steel

    Titanium alloy

    Stainless Steel 304/316L

    Carbon Steel

    Titanium alloy

    Stainless Steel 304/316L

    Center to Center Length

    300-3600mm

    300-3600mm

    Visible Length

    95-3360mm

    95-3360mm

    Glass Material

    Borosilicate glass

    Aluminosilicate glass

    Borosilicate glass

    Aluminosilicate glass

    Gasket

    Compressed fiber gasket

    Graphite gasket

    PTFE gasket

    Compressed fiber gasket

    Graphite gasket

    PTFE gasket

    Mica Shield

    N/A

    YES

    Working temperature


    ≤450°C

    ≤450°C

    Working Pressure

    40bar

    100bar

    Connection Tytpe

    Flange/Screw

    Flange/Screw

    Illumination System

    According to request

    According to request

    Frost Extension

    According to request

    According to request

    Connection Layout

    Side-Side/Side-bottom

    Side-Side/Side-bottom
