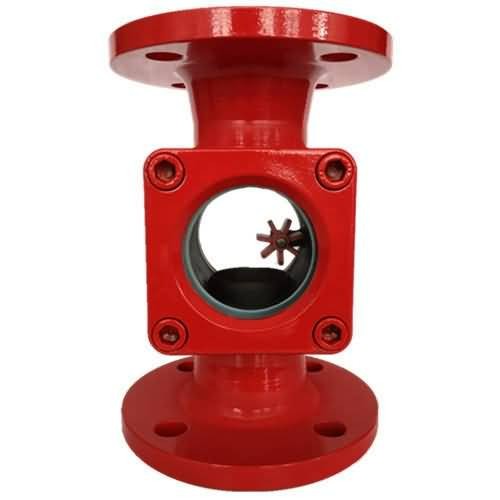

Flanged Double Glass Sight Glass With Impeller

  • Product Item:OV-0132
  • Material: Borosilicate Glass/Carbon steel/Stainless steel
  • Connection: Flanged
  • Type: Double glass with impeller
  • Class: 150#,300#,600#
  • paddle wheel sight flow Indicator  , flanged sight flow indicator  , sight glass flow indicator with impeller  , sight glass with impeller  , wheel type sight indicator  , rotatory wheel sight glass
    Inquiry Send Email

    Description

    Sight glass is also known as sight window, view port and flow indicator in sometimes, which is an observation window that allows operator to observe fluid stored under high temperatures, extreme pressures, and other extreme environmental conditions. Sight glasses are critical instruments used in the process industries to determine the condition and level of fluids and media in both tanks and pipelines. Sight glass is typically made of high temperature resistance robust toughened glass substrates, which are connected with pipes or vessels through the metal flange.

    Sight glasses are divided into round, square, rectangular sight glasses by their shape and according to different structures, sight glasses are divided lined/non lined sight glass , sight glass with neck, sight glass with hood, double window/single window, insulated sight glass, sight glass with scrapers, sight glass with flushing device and suitable for sight glasses for powdered materials. Sight glass connection can be flanged, thread and welding.

    There are two rectangular glass installed on flanged double rectangular windows sight glass,which make operator easily see through the sight glass, and easily observe in both side. Thanks to the rectangular glass observation window, the sight glass can observe longer scale medium than the round or square sight glass. Flange connection is easy maintenance.

    Main application

    1. Verify the production stages of a process visually.
    2. Inspect media or fluids for changes in color or consistency.
    3. Observe the liquid levels in a tank.
    4. Analyze conditions in industrial equipment, chemical reactor.

    Main Data

    Size

    DN15 ~ DN500

    Production Process

    Integral Casting/ Welding

    Shell material

    Carbon steel, Stainless steel, Carbon steel lined with fluorine, Ti

    Window material

    Soda-limeglass,Borosilicate glass, Quartz glass,Aluminosilicate Glass

    Sealing ring material

    Nitrile rubber gasket,PTFE gasket,Graphite composite gasket,

    Compressed fiber gasket


    Working temperature

    Soda-limeglass installed up to 150℃;

    Borosilicate glassinstalled up to 240℃.

    Quartz glassinstalled up to 550℃.

    Operating pressure

    PN0.6~2.5Mpa(Max 2500LB)

    Connection mode

    Flange / Thread/Tri-clamp
